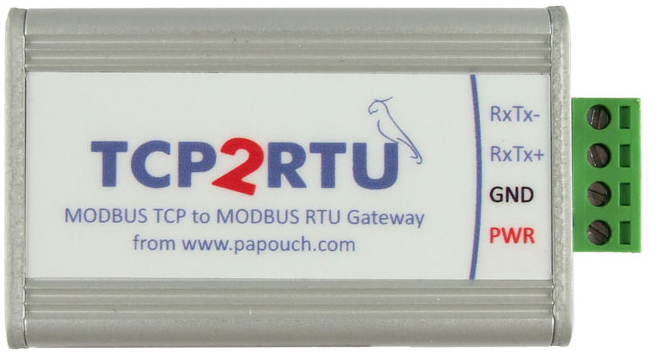

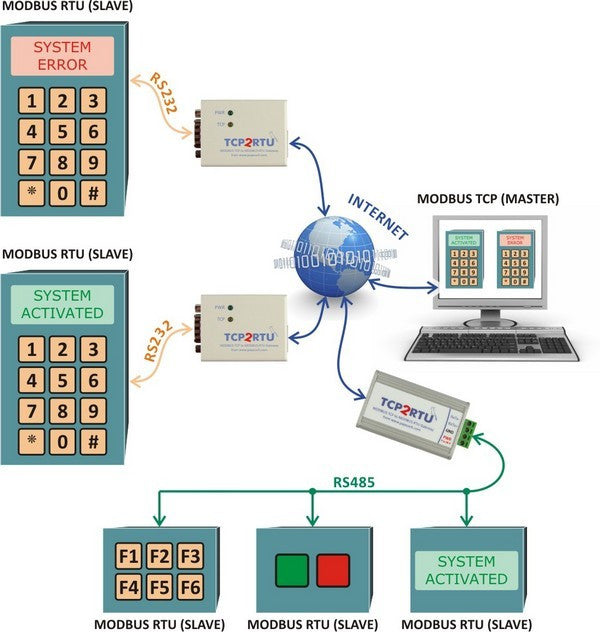

TCP2RTU is a transparent both directions converter of the MODBUS TCP protocol, running over Ethernet, into the MODBUS RTU/ASCII protocol, running over RS485. TCP2RTU works both directions since version 1.4. Either as a Modbus gateway (Master) or as a Modbus Slave.

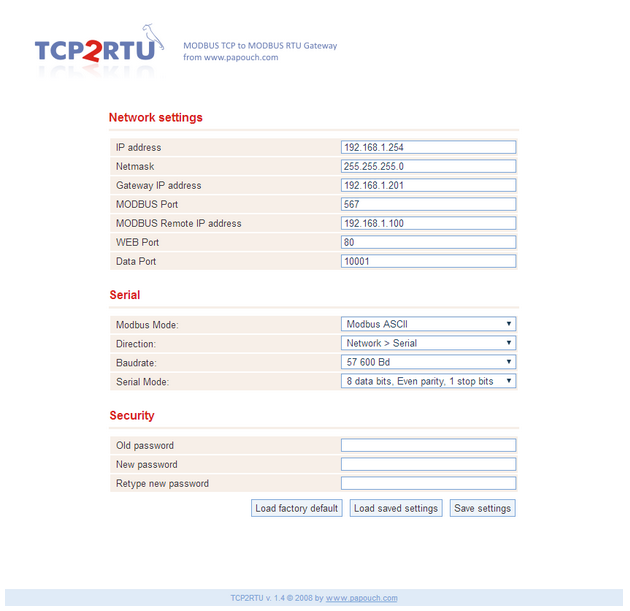

Configuration can be made over the internal WEB interface.

Features of MODBUS converter

• MODBUS TCP: 10/100 Mbit Ethernet
• MODBUS RTU: RS485
• Transparent conversion of MODBUS TCP to MODBUS RTU or ASCII.
• MODBUS RTU/ASCII over RS485
• Two communication sockets on one Modbus Port.
• One port for RAW data communication (Ethernet to RSxxx converter).
• Configuration: Internal web pages or via Telnet.
• Power supply range: 8 - 30 V DC
• TCP2RTU works both directions since version 1.4. Either as a Modbus gateway (Master) or as a Modbus Slave.

The TCP2RTU instruction manual PDF is available to download in our Support section.

No subscription fees to use the device, ever.

No active internet connection required to use this device -- it can be used on standalone and closed networks.
