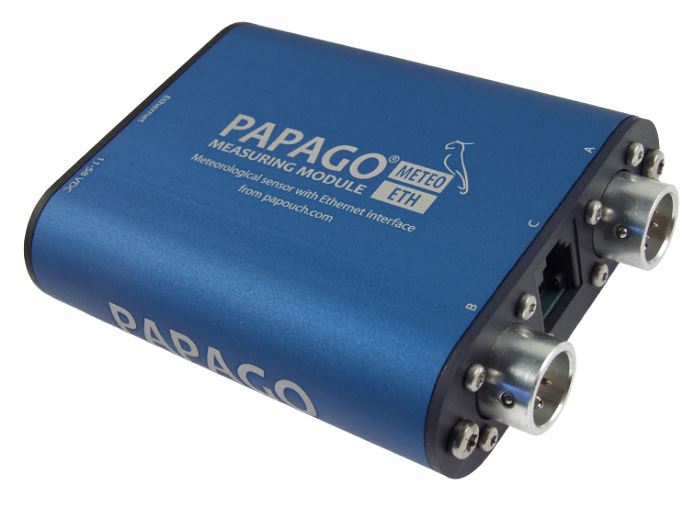

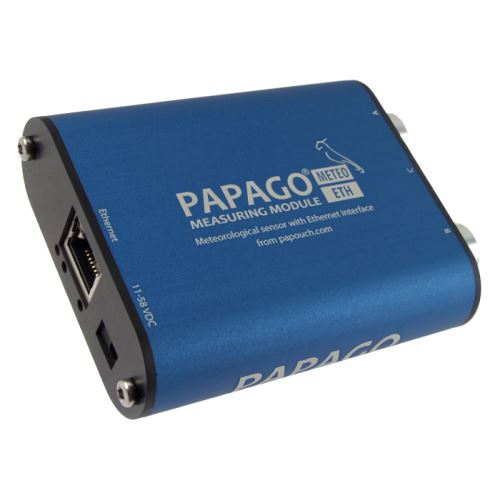

Papago Meteo ETH: Industrial weather station + Temperature Humidity Sensor + Anemometer (wind sensor)

AU$999.00

AU$850.00

Available units: 1
Quantity:

Papago Meteo ETH can measure temperature, humidity, dew point, carbon dioxide (CO2) concentration, wind speed and wind direction. Papago Meteo ETH has ethernet interface with PoE power supply.

** THIS BUNDLE INCLUDES: PAPAGO METEO unit, TEMPERATURE / HUMIDITY SENSOR, and ANEMOMETER (wind sensor) with a 12m lead ***

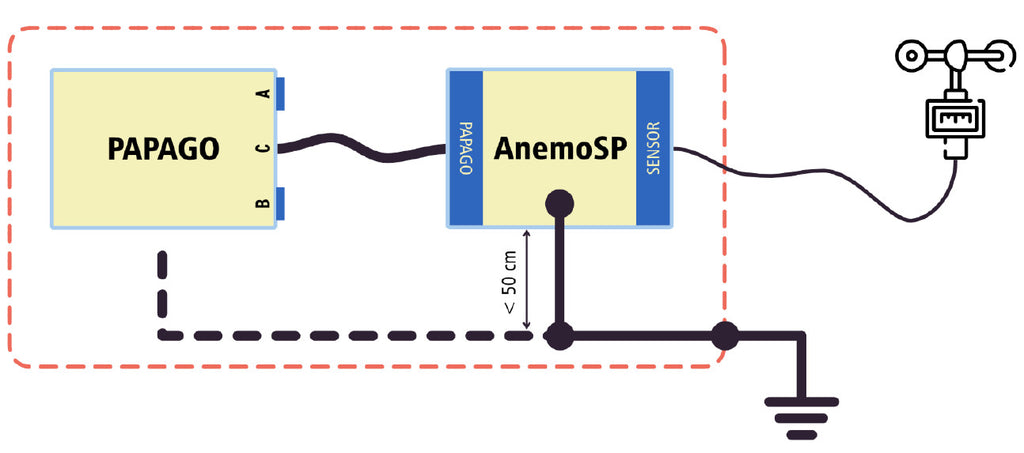

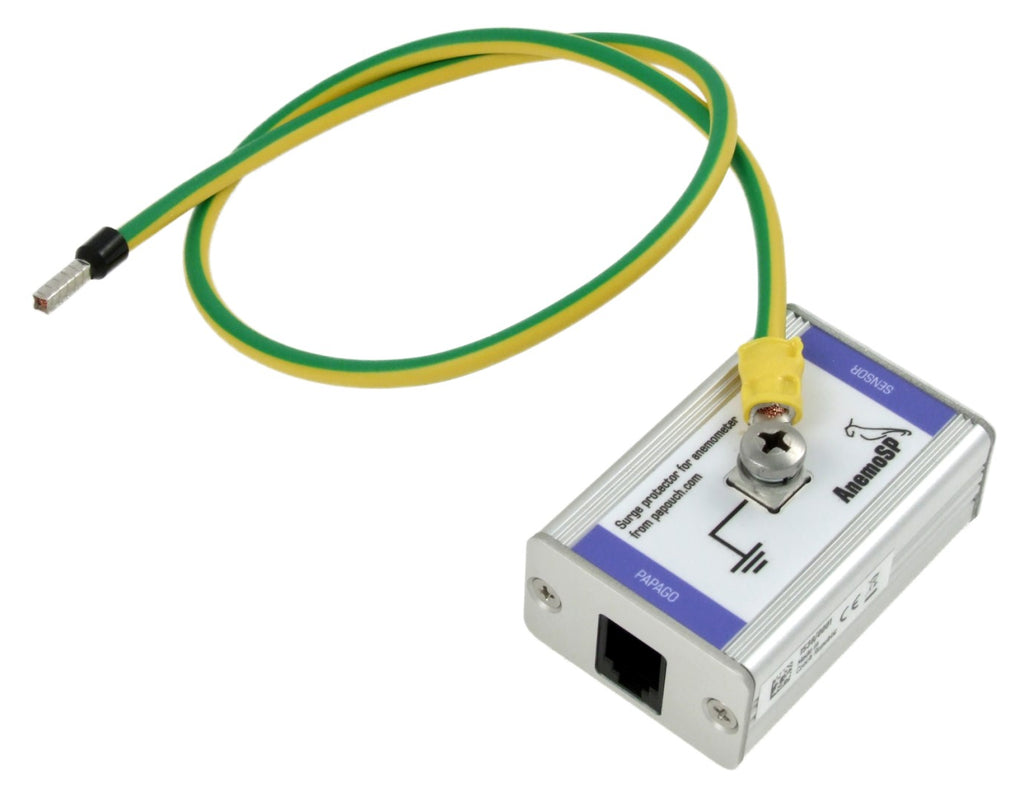

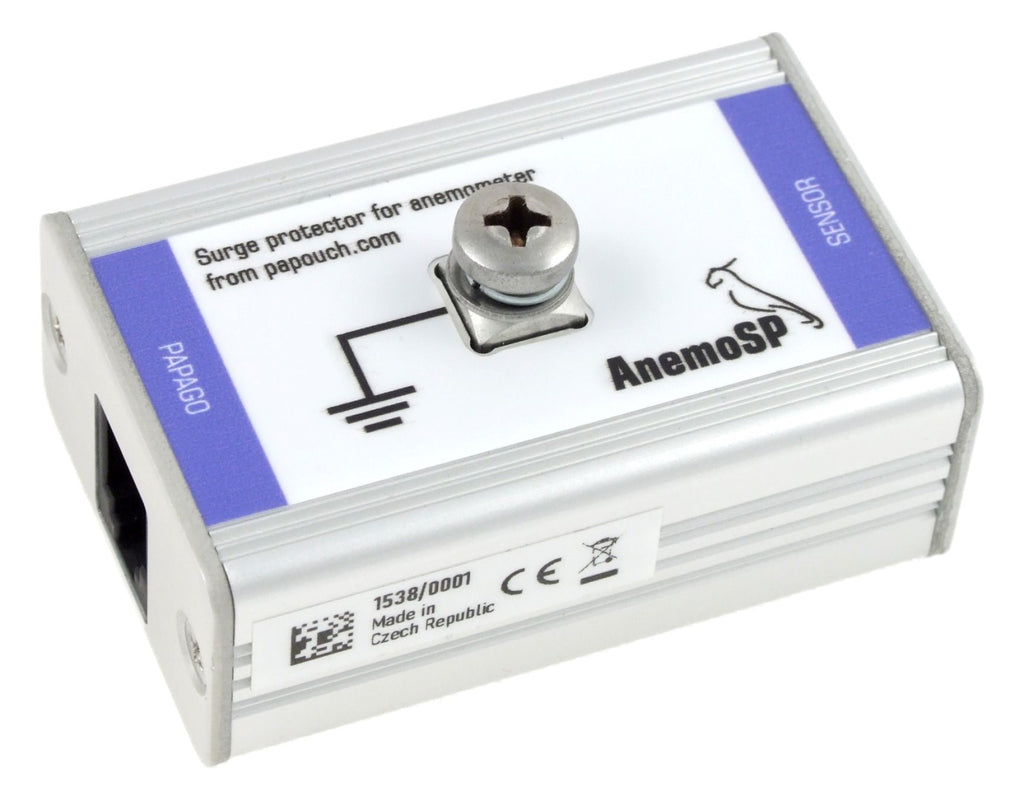

Includes Davis Instruments 6410 Anemometer, plus surge protector.

Papago Meteo ETH belongs to a family of Papago modules with some common properties. These are mainly the following:

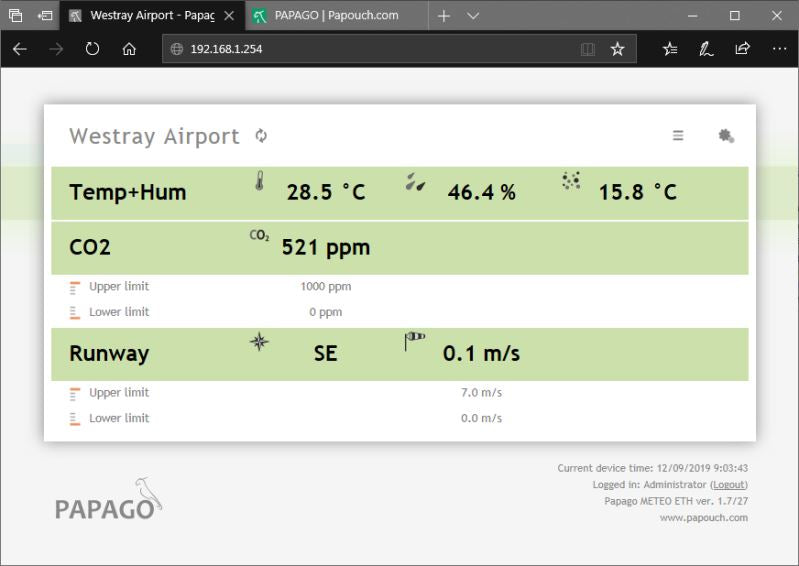

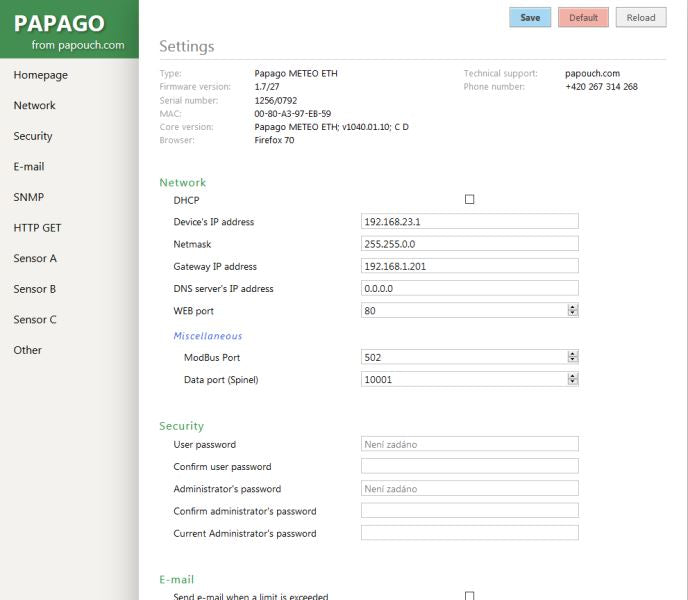

  • Ethernet interface, internal website with many standard communication protocols
  • PoE power supply or an external source. PoE eliminates the need to use an external power supply. A 240v Australian power supply is included with this item.
  • Internal memory and real-time clock. Measured data including the time of measurement is automatically stored in the memory if the communication is lost. The data is automatically sent after the connection is restored.
  • Elegant but robust metal box that can be mounted on a DIN rail. The box bears descriptions that allow connection without having to consult the manual. Also LED indicators for all important states help commissioning.
  • The possibility to display, store and analyze data in the WIX software (free and paid version of Wix both available).



Anemometer specifications

  • Mechanical sensor
  • Cable length: 12 m
  • Operating temperature: -40 to +65 °C
  • Wind direction accuracy: ±3°
  • Wind speed range: 0.5 to 89 m/s
  • Wind speed accuracy: 1 m/s or ±5%, whichever is greater
  • Wind cups diameter: 43 mm
  • Installation on a pole, post, pipe or surface

Anemometer installation

  • Mounting holes are 32 to 44 mm apart that allow the anemometer to be attached on a wooden post or surface. With the supplied U-bolts, the anemometer can be mounted on a pole having an outside diameter ranging from 32 to 44 mm.
  • To ensure correct orientation of the wind vane, mount the anemometer so that the arm points true north.
  • For best results, place the anemometer at least 2 m above surrounding obstruction such as trees or buildings that obstruct wind flow.
  • If mounting on a roof, mount the anemometer at least 2 m above the roof apex.
  • The standard for meteorological and aviation applications is to place the anemometer 10 m above the ground Seek professional help for this type of installation.
  • The standard for agricultural application is to place the anemometer 2 m above the ground. This is important for evapotranspiration (ET) calculations.

Sensors for Papago Meteo ETH

It is possible to attach up to three sensors listed below (to corresponding connectors A, B, C:

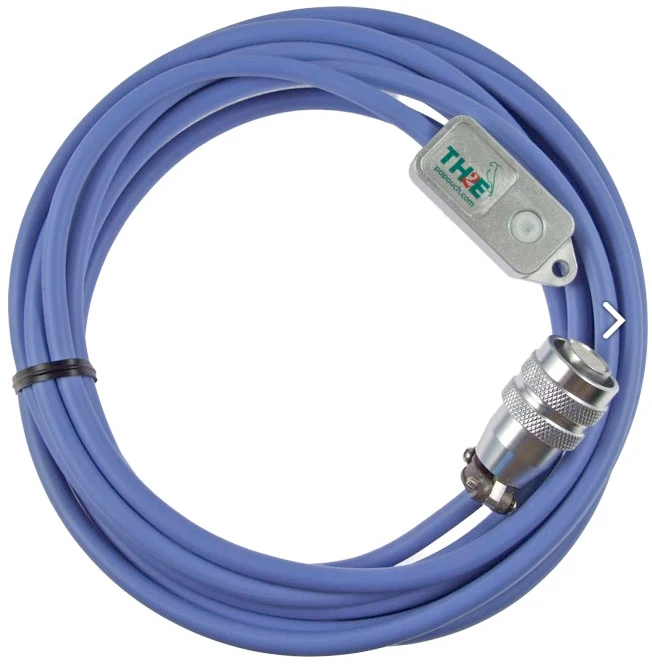

  • Combined sensor: temperature (-40 to +125 °C), humidity (0 to 100 %) and dew point (connector A or B)
  • Temperature sensor : temperature (-55 to +125 °C) (connector A or B)
  • CO2 sensor (Carbon dioxide): range 0 to 2000 ppm with accuracy ±25 ppm, Non Dispersive Infrared Sensor (connector A or B)
  • Wind speed and direction sensor: speed (0.5 to 89 m/s), direction (±3°) (only connector C)

Features of Papago Meteo ETH

  • Measurements per second: 1, 2 or 5 according to the settings
  • PoE standard: IEEE 802.3af
  • Possible external power supply 11 to 58 V DC, (external 240v Australian power supply also included -- 15v / 0.8A DC)
  • Typical power consumption 1.8 W
  • Package contents: Papago Meteo ETH, patch cable 1m

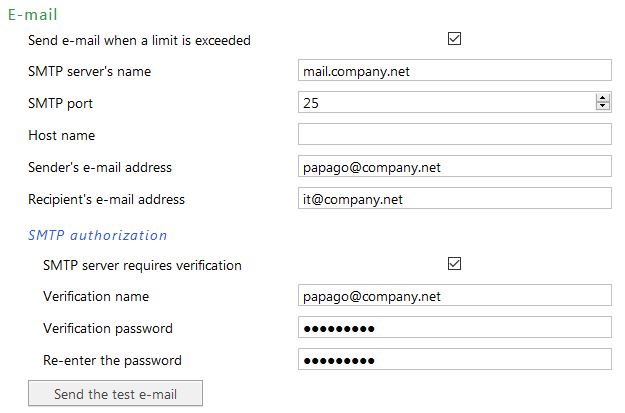

  • The device can send e-mails if set thresholds has been exceeded

Communication possibilities of Papago TH CO2

All products from the Papago range - including, of course, the thermocouple thermometer Papago TH CO2 ETH - provides a wide range of communications options. Thanks to protocols for machine reading, you can easily incorporate thermometers into your existing systems. It's naturally also possible to control the Papago through the web or using Windows software.

  • MODBUS TCP - a standard industry protocol
  • SNMP (including TRAP messages for specific events)
  • HTTP GET with open or encrypted data (128bit AES)
  • EMAIL for specific events (e-mail without SSL)
  • XML with the currently measured data
  • Spinel (binary protocol developed by Papouch Company)

No subscription fees needed to use this device, ever!

No active internet connection required to use this device -- it can be used on standalone and closed networks.

Want more information about how the Papago METEO Ethernet sensor devices works? Checkout our Papago METEO instructions PDF.
